Assimba Lux Duplex: ID DUP – KP.-007

Important Note: Unless you buy an “UNLIMITED” plan set or a multi-use plan set you may only build one house from a set of plans. Purchased plans cannot be re-sold.

Description

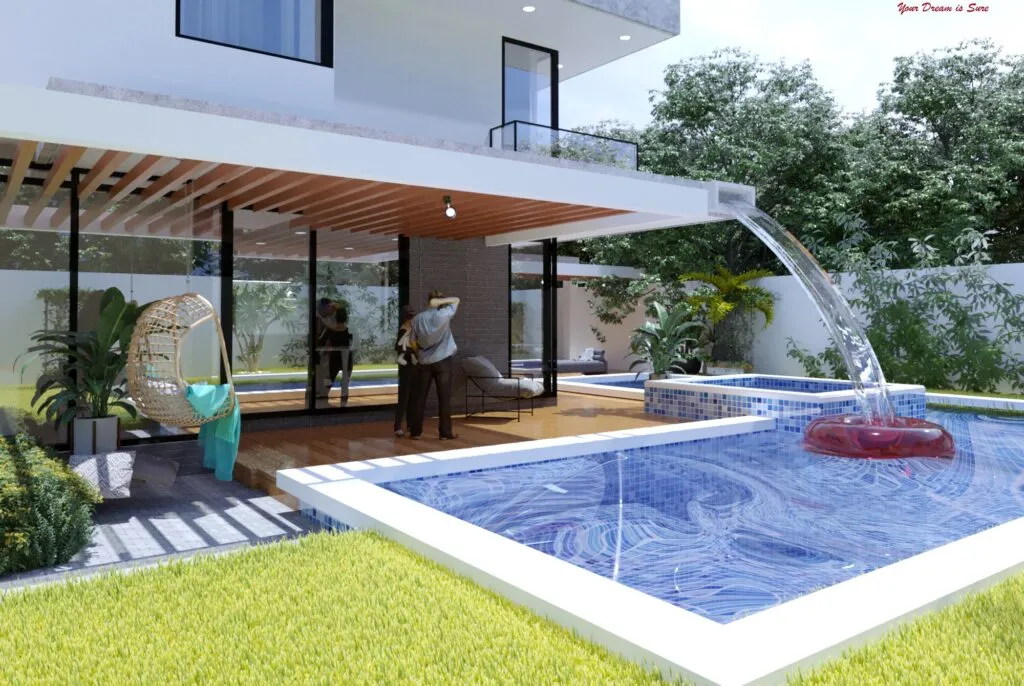

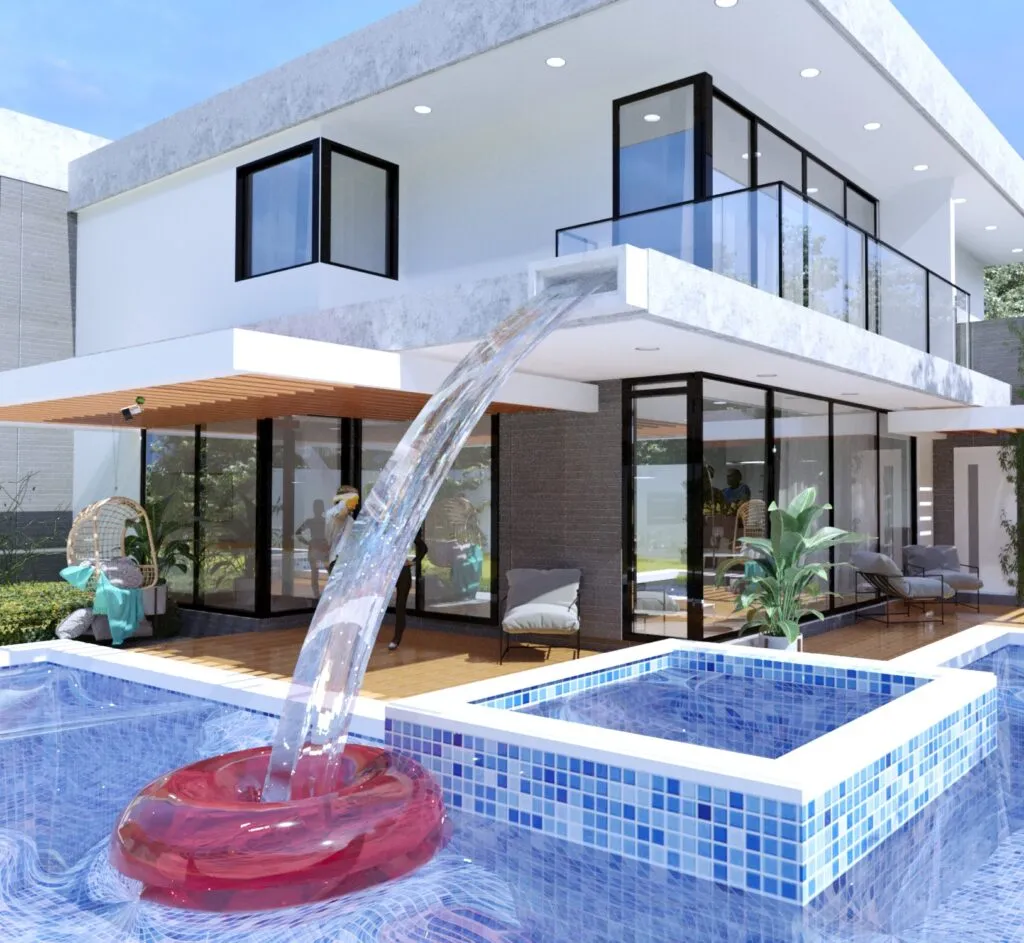

This 4-bedroom luxury duplex is designed for opulence of beauty both inside and out. The swimming pool with a pergola outdoor sitting area by the pool, the buckaroo, and the water fountain into the swimming pool offer a magnificent experience on a sunny day. The lounge, gaming room, and media room on the ground floor, and the cinema room on the first floor are designed to offer a cozy luxury living experience. The void over the main lounge with a chandelier view from the first, this duplex is designed to meet the luxury taste of a high-income family. The sleeping spaces are designed for an exquisite resting experience of the family. This duplex is suitable for plot sizes from 500 m2 upwards as per local zoning regulations and with an access road on the front.

Design Features Summary

Design Type: Duplex
Ground Floor: 02 carport/1 Lounge/Gaming Room/TV Room/Dining/Kitchen + Terrace/1 Guest Bedroom + Ensuite Bath/1 Internal Guest Toilets/2 External Baths for Swimming Pool Area;
First Floor: Void Over Lounge/Cinema Room/3 Bedrooms with Ensuite Bathrooms/3 Baths.
Special Features:
– Swimming Pool with 2 baths and a pergola, buckaroo, 02 Carport, Gaming Room, Gallery, TV/Media Room, Kitchen with breakfast area with 4-seater table, and 10-seater Dining Room on the ground floor surrounded by large bay windows;
– Vast master bedroom with couch and TV area, walk-in closet, box room, and bathroom; Cinema Room, Void over Lounge with Chandelier view.
Area :
– Total Built Area: 649 m2;
– Ground Floor: 336 m2;
– First Floor: 313 m2.
Bedrooms :
– All bedrooms contain walk-in closets;
– The vast master bedroom contains a vast walk-in closet, box room, and ensuite bathroom with allowance for a bath tub and shower cabin.

Plan Set Contents

All purchased plan sets for this design include the following:
– Floor Plans;
– Elevations;
– Vertical Cross Sections;
– Roofing Principle Plan;
– Foundation Plan;
– Slab Framing & Beam Outline Plan;
– Design Construction Details;
– Reinforced concrete plans for flooring details, rib beams, and the staircase;
– Fence Design Details;
– Swimming Pool Construction Plans and Vertical Cross Sections;
– Buckaroo Plans and Cross Sections;
– Plumbing Schematic Cross Section;
– Septic tank, and manhole construction details;
– Electrical layout plans.

Plan Customization

Yes, this plan can be customized!
WhatsApp us on +1 323 901 0388 or email us at contact@reginahouseplan.com to tell us about your desired changes so we can prepare a quote for the customization design service.

File Type Pricing Options

File	Description	Price
PDF Electronic Set (A3 Paper format, Scale 1/75)	PDF Plan sets are the best value as immediately you complete the checkout download begins and you can do inexpensive local printing to any chosen format.	600
